Researchers at Imperial Faculty have developed an external fixator, a lower-price tag, uncomplicated-to-manufacture stabiliser for broken bones to support in areas where by this kind of units are high priced or scarce. &#13

The external fixator holds broken bones in position with steel pins or screws connected to a encompassing steel frame. The advance is thorough in Frontiers in Medical Technological innovation.

When delicate tissue is severely damaged with each other with bone, external fixators are the to start with phase in preserving fractures in legs and arms in position in advance of an operation to correct the bones can be carried out.

Even so, their charge and minimal availability in many areas signify people today resort to handmade or reduced-high quality fixators that may perhaps guide to significant complications or inappropriate healing.

The Imperial external fixator is at this time getting examined in Gaza and Sri Lanka, and considering the fact that the invasion of Ukraine, more than 500 fixators have been created in Poland to help with the disaster.

This fixator is low-value, lightweight design and style that can be manufactured regionally to global specifications. The group formulated the design and a toolkit to allow for recurring specific manufacture of the fixator anyplace globally.

In Sri Lanka, it is being examined for road website traffic accidents, which account for all over 70 per cent of fractures in reduced- and center-income countries (LMICs). In Ukraine and Gaza, it is currently being utilised for gunshot wounds and other conflict trauma.

In a statement, lead researcher Dr Mehdi Saeidi, from the Office of Bioengineering at Imperial, claimed: “We have managed to produce an exterior fixator that is a person-tenth of the charge of industrial devices but with related overall performance. This unit can provide surge capacity for conflict zones or in response to unpredictable incidents and cases, which was the situation with the war in Ukraine.”

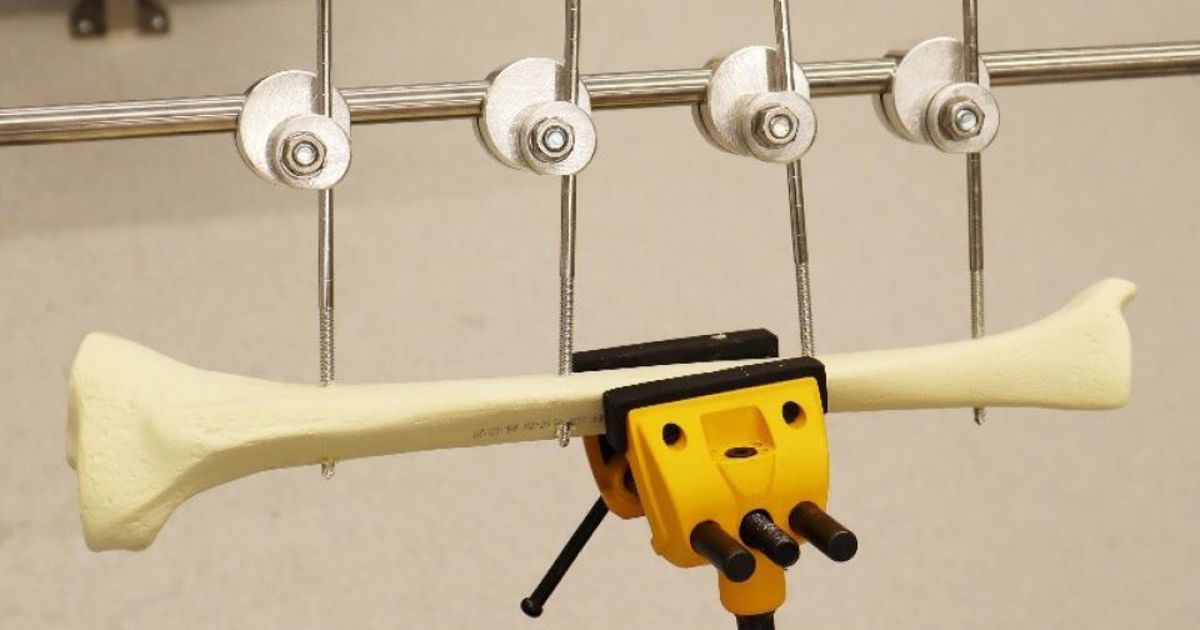

The fixator is produced up of four clamping units and a rod, which can be made from stainless steel and aluminium making use of common producing techniques, this sort of as milling and turning.

More FROM Health-related & Healthcare

For the reason that of the precision of the parts, initial checks showed that the fixator would have to have to be developed by highly experienced operators or applying highly developed equipment. This prompted Dr Saeidi to establish a producing toolkit with factors such as drill bits, a noticed and cutting guides to make the manufacturing simpler, faster and reproducible with higher precision.

The fixator was then tested in cadaver leg bones, displaying it had related stiffness to business gadgets, as well as undergoing mechanical testing that simulated strain on the unit to demonstrate its means to retain the bones in place in excess of a lengthier time period.

The system is now becoming trialled in three nations. The system was at first conceived in response to a noted shortage by associates in Sri Lanka, and with Dr Puji Silva at the College of Moratuwa, the Imperial exterior fixator and relevant designs are staying examined.

In Gaza, in collaboration with Professor Ghassan Abu-Sitt at the American College of Beirut, the machine is mainly becoming trialled with gunshot wounds. This demo is also evaluating the skill of the external fixator to be cleaned, sterilised and reused. A next trial will soon commence with the gadgets entirely manufactured in Gaza, in collaboration with the Islamic University of Gaza (IUG).

At the outbreak of the Ukraine conflict, Imperial’s Professor Anthony Bull was approached by surgeons in Poland who urgently desired these types of fixators, ensuing in additional than 500 of the products remaining manufactured for use in Ukraine. The drawings provided freely on Imperial’s web page were all that was required by the engineers.

Professor Jonathan Jeffers, a person of the study investigators from the Section of Mechanical Engineering at Imperial, said: “This function, conceived years in the past primarily based on needs recognized by our military and civilian trauma surgeons, reveals how primary engineering can mitigate suffering in the most dreadful of cases. The Ukraine condition is specifically why this venture was conceived and demonstrates the capacity to react to surge need.”

The staff now expects to roll out the design to extra LMICs at a larger scale with the help of companions in the Entire world Health Organisation and the United Nations Development Programme. The work was funded by the NIHR.
